Ring Mill For Ultrafine Grinding Calcium Carbonate

Discharge fineness: 325-3000 mesh

Feed size: <20mm

Output: 1-20 T/H

Product features: Output size 300-2500 mesh adjustable freely; Capacity 0.5-30 t/h, meet the different production requirements; High grinding efficiency, the fineness reaches 5 microns by classification at a time.

86-18917951321
live chat Get quotation

A ring mill, also known as a ring roller mill, micro powder grinding mill, or ultrafine grinding mill.

It is a grinding equipment commonly used in the industrial production of ultrafine calcium carbonate.

HGM ring mill
HGM ring mill
main unit of ring mill
main unit of ring mill

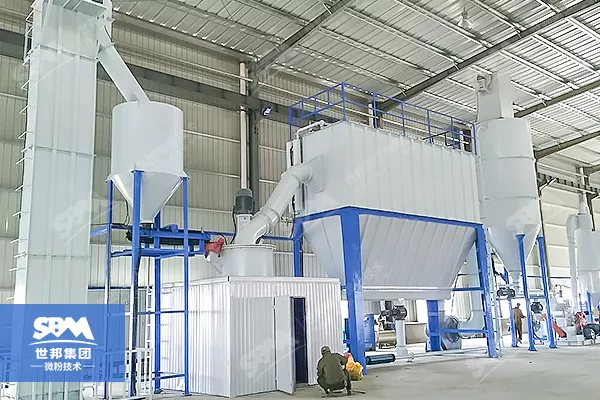

ring mill plant
ring mill plant

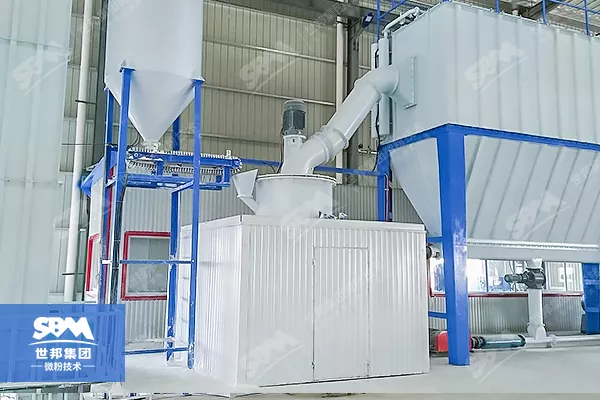

ring mill with soundproof room
ring mill with soundproof room

Principle of Ring Mill Operation

The ring mill operates on the principle of compression and grinding.

It consists of 3 or 4 grinding rings and several grinding rollers.

The material is fed into the center of the rotating grinding ring.

As the ring turns, centrifugal force pulls the material to the edge of the ring.

At the edge, the material is ground between the ring and the rollers.

Learn More

How does the ring mill work?

working principle of ultrafine mill

Key Components of Ring Mill

HGM125L ultrafine powder grinding mill
  • Grinding Ring: The grinding ring is the main component that provides the necessary compression and shearing force for grinding. It rotates and provides the surface against which the rollers press the material.
  • Grinding Rollers: These are cylindrical rollers that apply the grinding pressure to the material against the grinding ring. They roll on the ring and crush the material into fine particles.
  • Classifier: A classifier is used to separate fine particles from coarse ones. The fine particles are collected, while the coarse ones are sent back for further grinding.
  • Feeder: The feeder uniformly feeds the material into the grinding chamber.
  • Blower: The blower provides airflow to transport the ground material through the mill and to the classifier.
  • Cyclone Separator: This separates the ground particles from the air stream and collects them.

Ring Mill Advantages

  1. High Fineness: Ring mills are capable of producing very fine particles, making them suitable for ultrafine grinding applications.
  2. Efficiency: The design of the ring mill allows for efficient grinding with lower energy consumption compared to other grinding methods.
  3. Consistency: Provides uniform particle size distribution.
  4. Compact Design: The vertical structure of the ring mill requires less space compared to horizontal mills.
HGM grinding mill structure

Applications of Ring Roller Mill

application of ring mill

Calcium Carbonate

Widely used in the production of ultrafine calcium carbonate for applications in the plastics, paper, and paint industries.

Minerals and Ores

Suitable for grinding various minerals and ores. Mainly used for grinding non-metallic ores with Mohs hardness below 6 and some metal ores. For example: limestone, calcite, dolomite, gypsum, barite, marble, kaolin, talc, iron ore, mica, bentonite, chalk, illite, pyrophyllite, pumice, sepiolite, magnesite, diatomite, graphite, fluorite, rock phosphate, fly ash, etc.

Other Materials

It can also be used for grinding glass, bamboo powder, egg shells, etc.

Technical Specifications of Ring Mill

ModelHGM80HGM90LHGM100L-ⅡHGM100PHGM125LHGM1680L
Ring Diameter(mm)8009001000100012501680
Ring Number (PCS)344444
Input Size (mm)≤10≤10≤15≤15≤20≤20
Adjustable range of finished product (mesh)150-3000150-3000150-3000150-3000150-3000150-3000
Capacity (t/h)0.5-5.50.8-6.51.2-101.2-112.5-205-45
Outlet Size L*W*H (mm)8605*4139*605011735*3952*752514507*3633*756214362*4200*756219261*4406*859125067*5414*9007
Main motor power (KW)7555*2132/75*2132/75*2185315
HGM Series Ring Mills Parameters
  • Feed Size: Typically less than 20 mm.
  • Output Size: Can achieve ultrafine sizes, typically ranging from 1 micron to 45 microns.
  • Capacity: Varies depending on the model and material, but can range from a few kilograms per hour to several tons per hour.
  • Power Consumption: Efficient design minimizes power usage, with specific consumption rates varying based on the application.

Ring Mill Maintenance

Regular maintenance is crucial for optimal performance. This includes checking and replacing worn-out rollers and rings, ensuring proper lubrication, and keeping the feeding and classification system clean and blockage-free.

Other Calcium Carbonate Grinding Mills

CLRM Series Enhanced Roller Grinding Mill
Ultrafine Vertical Mill
YGM Raymond Mill

CLRM Grinding Mill

CLUM Ultrafine Vertical Mill

YGM Raymond Mill
